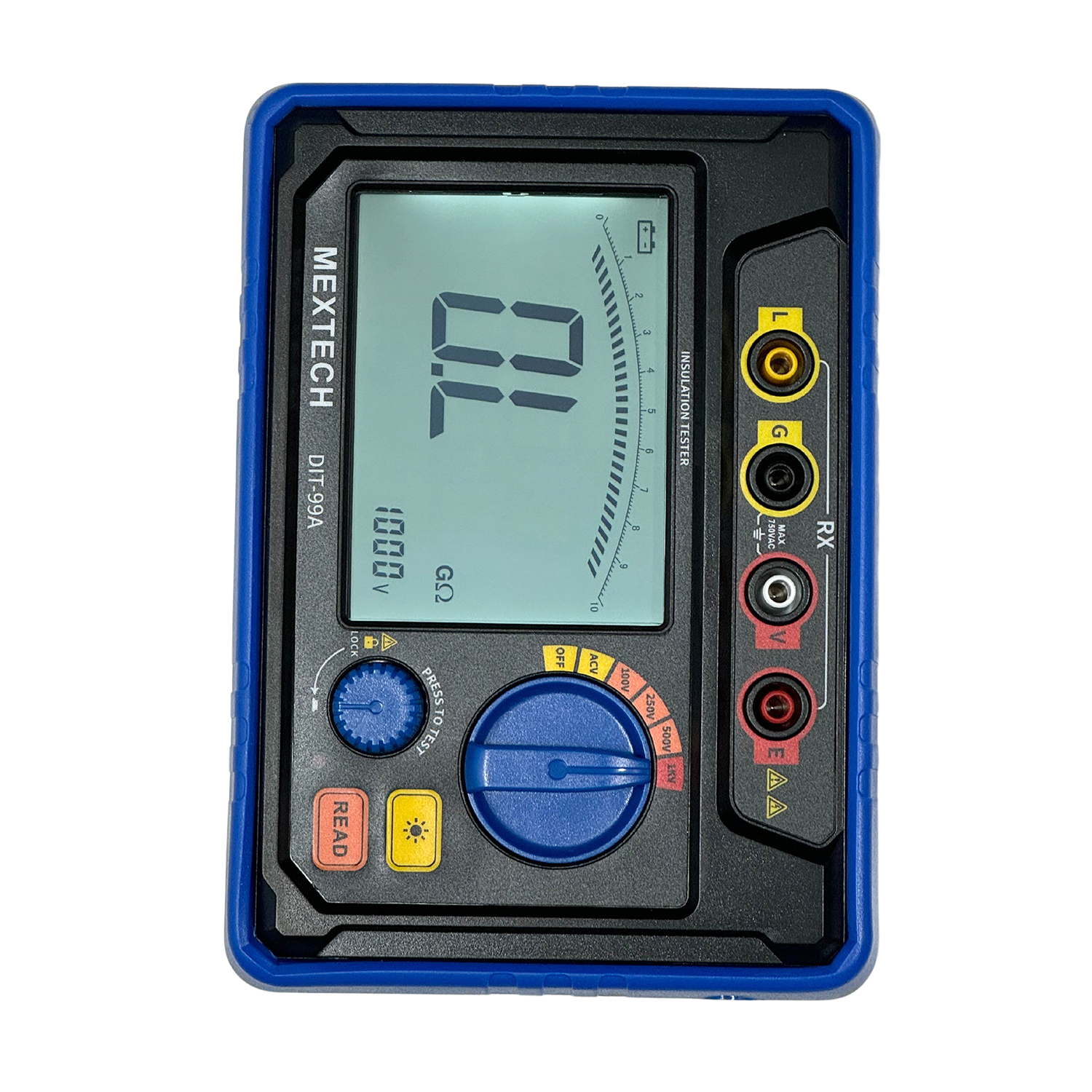

Home > Product > Insulation Tester > DIGITAL INSULATION TESTER DIT-99A
  • Features
  • Specification
  • Applications
  • Accessories
  • Download

Features

 Auto data hold
 Low Battery Indication
 Overload Indication: LCD displays “1”
 Fault protection
 buzzer alarms if short circuit
 Operation Environment: Temperature: 0˚C – 40˚C; Humidity:30% -80% RH
 Storage Environment: Temperature: -10˚C – 50˚C; Humidity <85%RH
 Powered Supply : 8 X AA Size batteries.
 Display: 54 x 26mm.
 Dimension: 140 x 100 x 48 mm
 Weight: 500g including Batteries

Specifications

  • Display: 60 x 32mm LCD
  • Max reading: 1999 counts
  • Overload Indication: LCD displays “1”
  • Low Battery: Low Battery sign on LCD
  • Static Consumption: about 10mA, short circuit current: >1.7mA
  • Operation Environment: Temperature: 0˚C – 40˚C; Humidity:30% -80% RH
  • Storage Environment: Temperature: -10˚C – 50˚C; Humidity <85%RH



Technical Specifications:



Voltage Range Measurement Range Resolution Medium Resistance Accuracy
500V 1000MΩ 20MO~100MΩ 1MΩ 20MΩ ±(4%+5digits)

Applications

This is a high Quality Multirange Insulation Tester. It’s easy to Operate.

Accessories

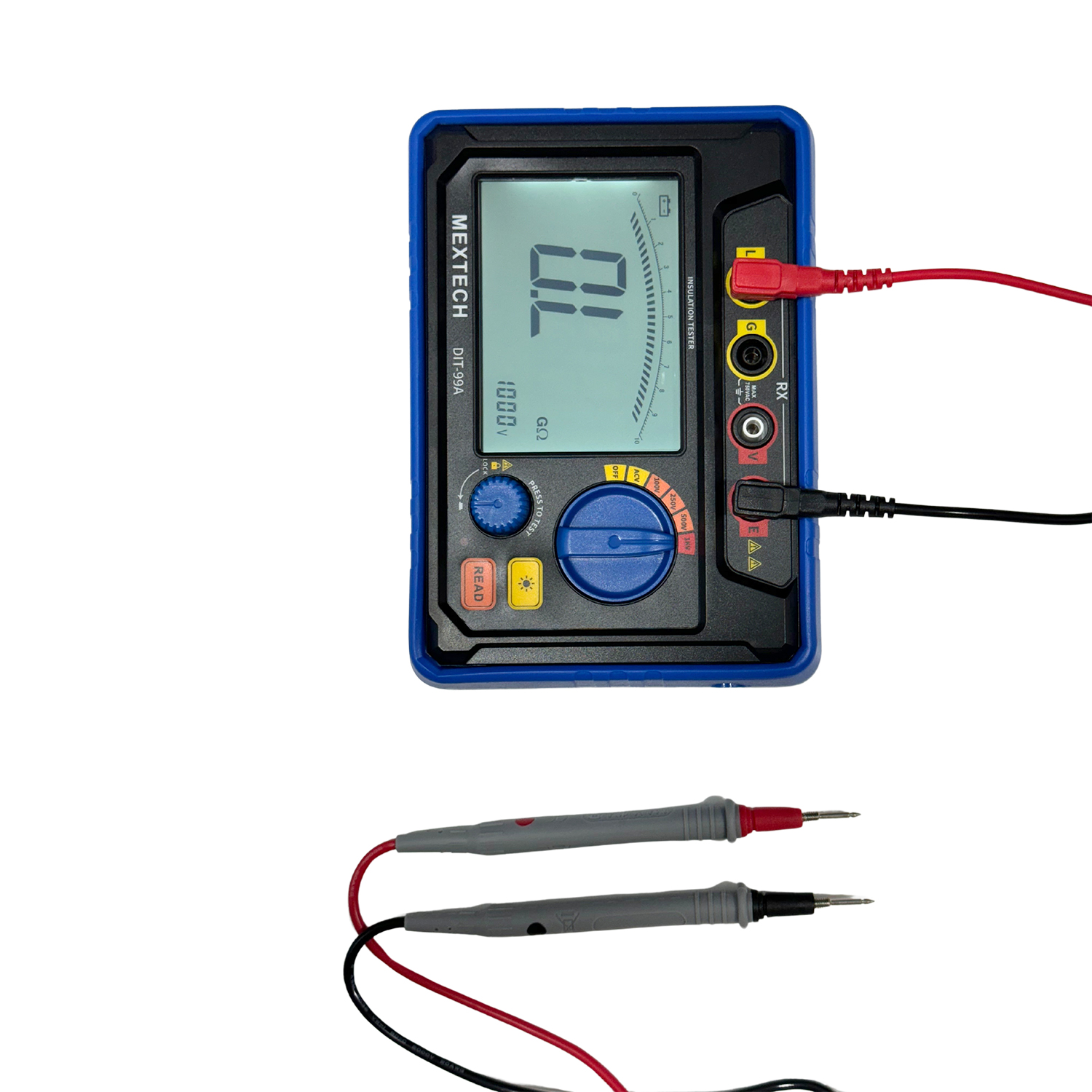

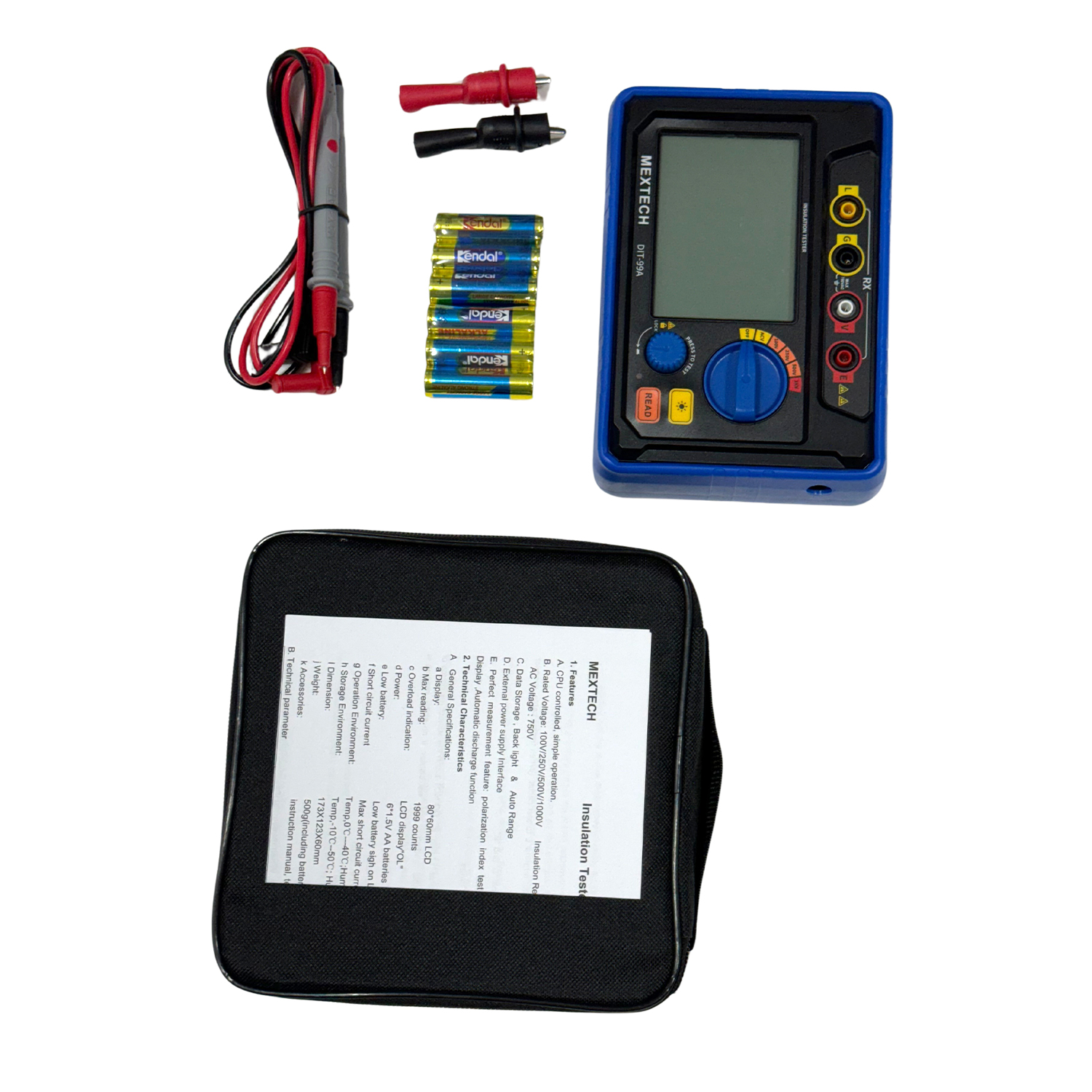

Instructional manual, 8 Nos. 1.5V Batteries, Test Leads.

DOWNLOAD
