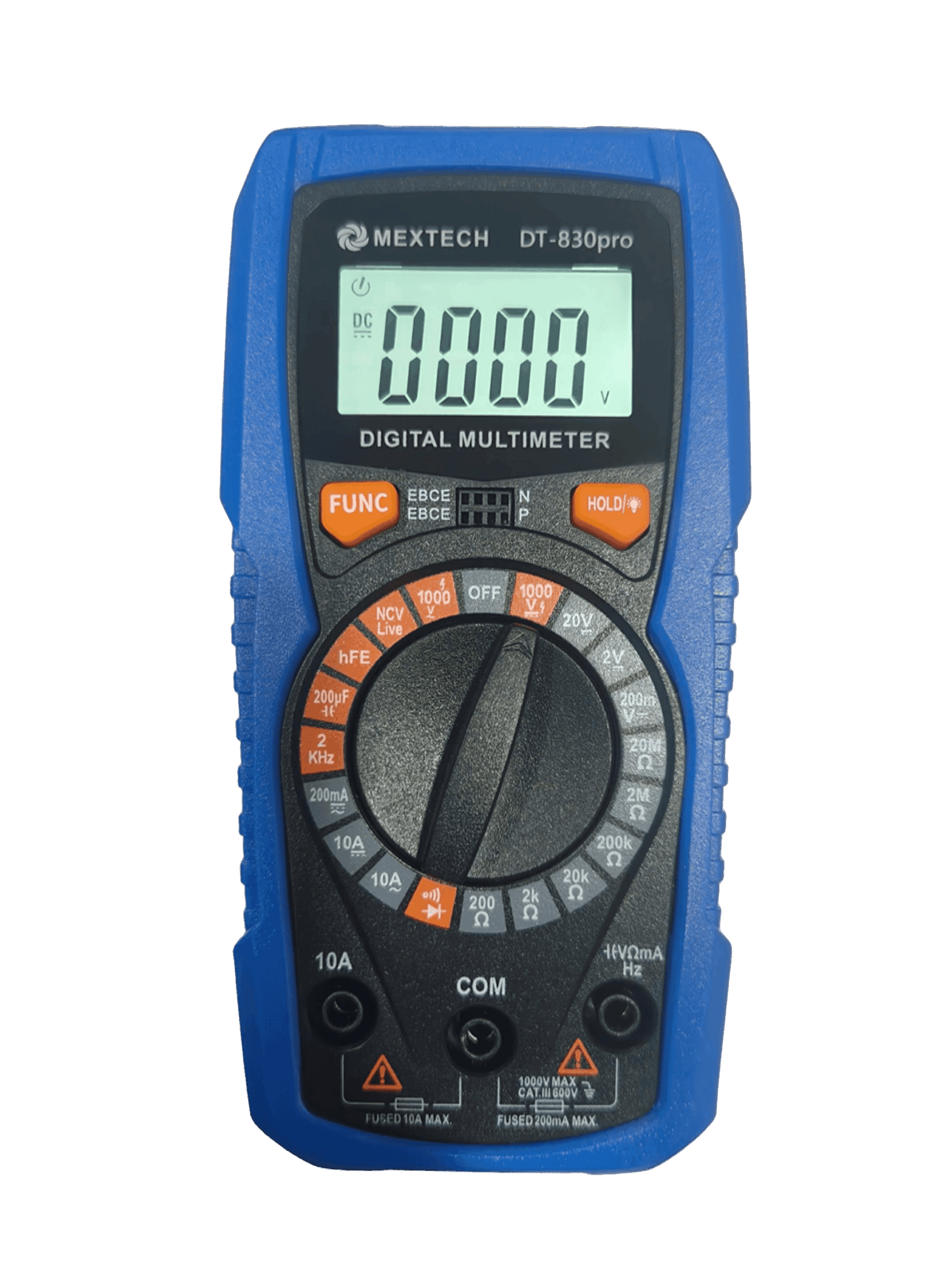

This is a 3½ Digits multimeter with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity, Non contact AC Voltage, Resistance, Frequency, Capacitance and other parameters. It is an ideal tool for the Electricians, Engineers, Laptop & Mobiles & Electronics appliances Repairing Centre, Factories, Industries, Laboratories, Students, Household.
DC VOLTAGE
| RANGE | RESOLUTION | ACCURACY |
| 200mV | 0.1mV | ±0.8% of rdg ±2 digits |
| 2V | 0.001V | |
| 20V | 0.01V | |
| 1000V | 1V | ±1.2% of rdg ±3 digits |
DC CURRENT
| RANGE | RESOLUTION | ACCURACY |
| 200mA | 0.1mA | ±1.5% of rdg ±3 digits |
| 10A | 0.01A | ±2.5% of rdg ±5 digits |
AC CURRENT
| RANGE | RESOLUTION | ACCURACY |
| 200mA | 0.1mA | ±1.5% of rdg ±5 digits |
| 10A | 0.01A | ±3.5% of rdg ±5 digits |
AC VOLTAGE
| RANGE | RESOLUTION | ACCURACY |
| 1000V | 1V | ±1.5% of rdg ±3digits |
Input Impedance: 10MΩ
Response: True RMS
Maximum Input Voltage: 1000V AC (RMS)
Frequency Response: 40Hz to 1KHz(applicable to standard sine wave and triangle wave)
Display: True RMS (other waveform size 200Hz is for reference only)
DIODE & CONTINUITY
| RANGE | DESCRIPTION |
| The on resistance is about 50Ω or less, and the buzzer sounds in the machine. | |
| Displays the approximate diode forward voltage value. |
Overload Protection: PTC 250V DC or AC rms.
RESISTANCE
| RANGE | RESOLUTION | ACCURACY |
| 200Ω | 0.1Ω | ±1.5% of rdg ±5 digits |
| 2kΩ | 0.001kΩ | |
| 20kΩ | 0.01kΩ | |
| 200kΩ | 0.1Ω | |
| 2MΩ | 0.001MΩ | |
| 20MΩ | 0.01MΩ | ±2.5% of rdg ±5 digits |
Overload Protection: 250V DC or AC RMS.
CAPACITANCE
| RANGE | RESOLUTION | ACCURACY |
| 200µF | 0.1µF | ±4% of rdg ±5 digits |
TRANSISTOR hFE TEST (0-1000)
| RANGE | Resolution | Accuracy |
| hFE | The display reads an approximate value for hFE(0-1000) | The base current is approximately 2.8V |
FREQUENCY
| RANGE | RESOLUTION | ACCURACY |
| 2KHz | 0.001KHz | ±1.5% of rdg ±5 digits |
Overload Protection: 250V DC or AC RMS
This is a 3½ Digits multimeter with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity, Non contact AC Voltage, Resistance, Frequency, Capacitance and other parameters. It is an ideal tool for the Electricians, Engineers, Laptop & Mobiles & Electronics appliances Repairing Centre, Factories, Industries, Laboratories, Students, Household.
Instruction Manual, 1 Set test leads & 2pc AAA batteries.
