FEATURES
Display : 3¾ Digits with 5999 Counts With Backlight.
Over Range Indication,
Overload Protection
Fuse Protection
Wall Mount & Table Type
Data Hold Function
Auto/Manual Ranging
Non Contact AC Voltage Detector.(NCV)
Sampling Time 0.4 Seconds
Auto Power off : 15 mins.
Operating Temperature & Humidity : 0°C To 40°C, 45%-80%RH
Storage Temperature & Humidity : -20°C To 60°C, 45%-80%RH
Power supply : 3 X AAA Batteries.
Display Size : 47 X 30 mm
Unit Size: 148×69×44mm
Weight : 190gm Excluding Battery
SPECIFICATION
| Basic Function | Range | Best Accuracy |
| AC Current | 10A (3 Ranges) | ±3.0% in A/ ±1.5% in µA, mA |
| DC Current | 10A (3 Ranges) | ±2.0% in A/ ±1.0% in µA, mA |
| AC Voltage | 600V (2 Ranges) | ±1.5% |
| DC Voltage | 600V (2 Ranges) | ±0.5% |
| Resistance | 60MΩ (Auto Range) | ±0.8% |
| Capacitance | 99.99mF(Auto Range) | ±3.0% |
| Frequency | 10KHz (2 Range) | ±2.0% |
| Duty Cycle | 10～95% | ±2.0% |
| Temperature | -30～1000°C | ±2.0% |
| Continuity | Yes | |
| NC AC Voltage Detector | 90-1000V |
Application

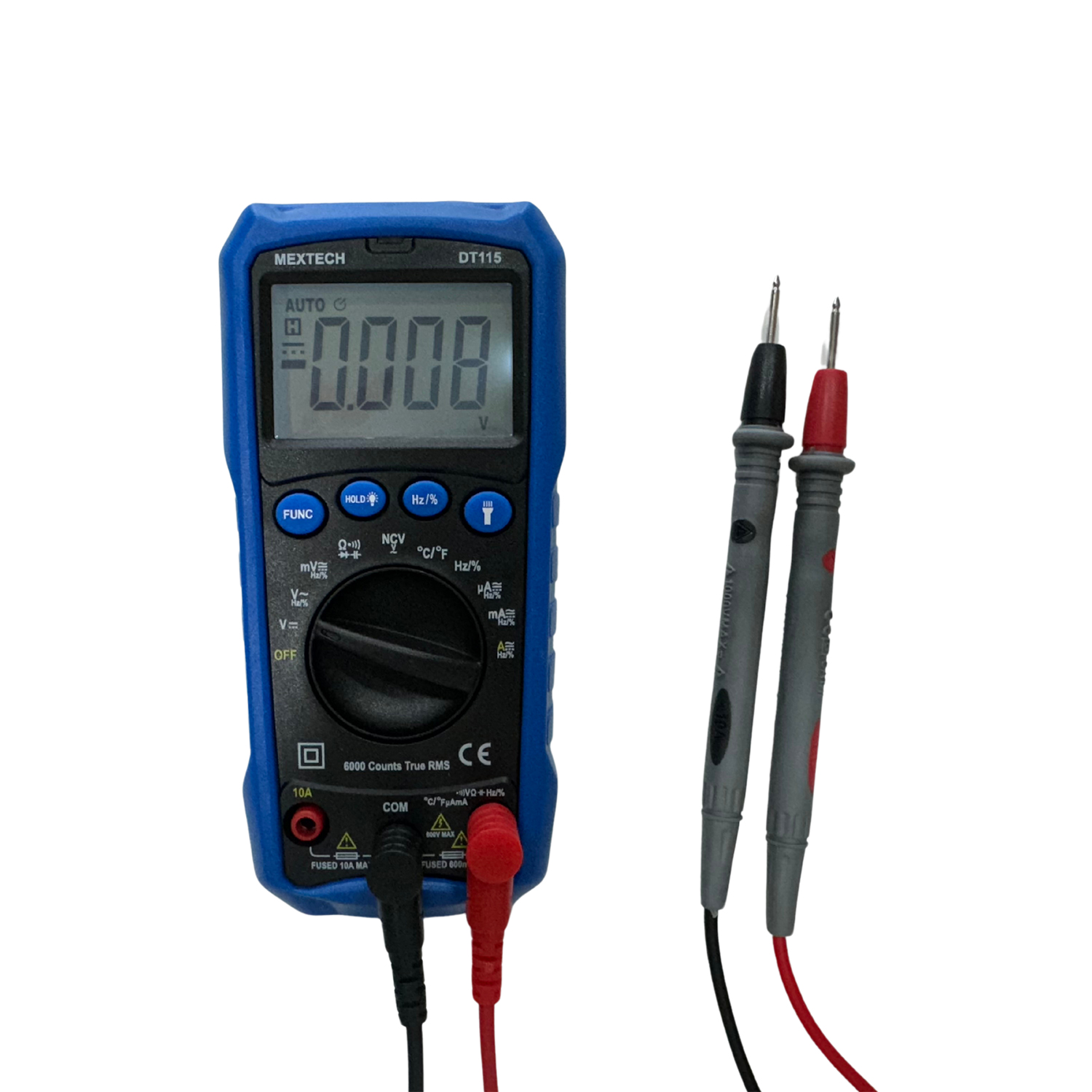

This is a 3¾ Digit 6000 Counts True RMS Multimeter With Backlight & Touch. It Perform AC/DC Voltage, AC/Dc
Current, Frequency, Resistance, Capacitance Etc.
Accessories

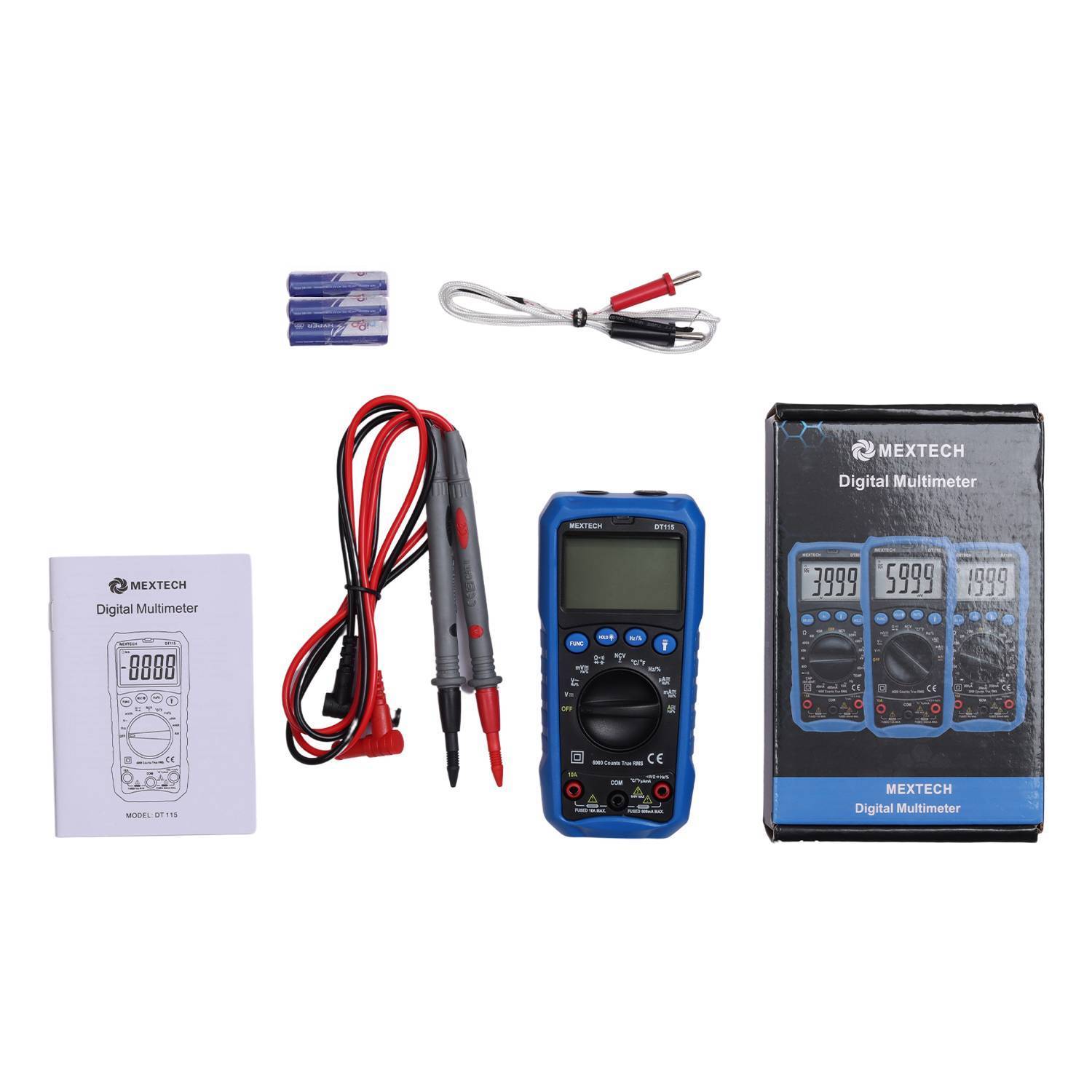

Instruction Manual, 3 X AAA Batteries, 1Set Test lead, Temperature Probe.
