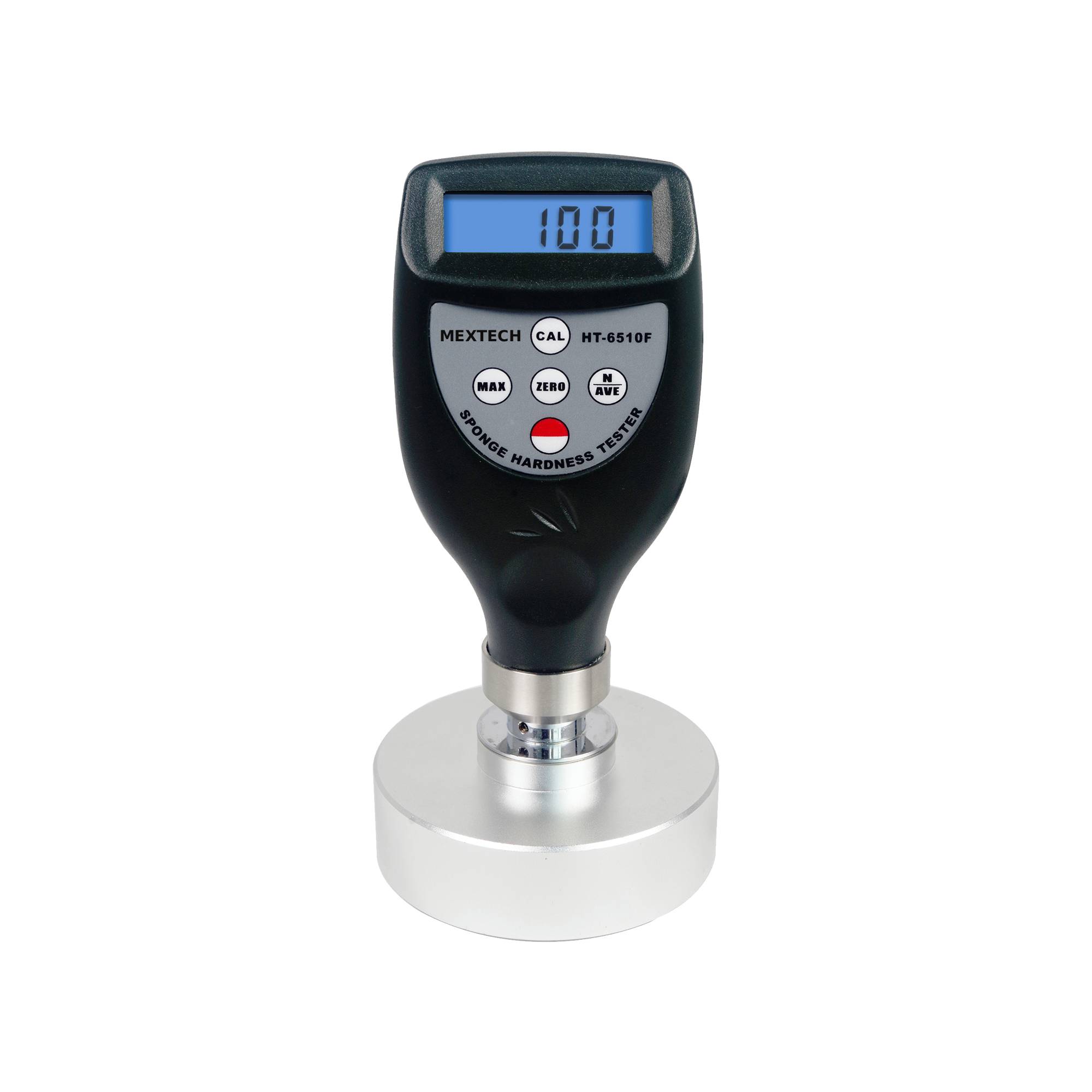

Foam Hardness Tester HT6510F
Model HT6510F is suitable for the hardness measurement of foam.
₹39,294.00
Taxes included. Free shipping across India.
Not sure it’s the right instrument?Ask the Mextech team on WhatsApp, by phone or email.
Why engineers choose it
Key features
Model HT6510F is suitable for the hardness measurement of foam.
- It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
- With average calculate function.
- Peak value deposit function.
- Under-voltage alarm function.
- Use USB data output to connect with PC.
Technical data
Specification
| Parameters | Tested Result/Mean Value/Max.Value |
| Display Range | 0~100HF |
| Measurement Range | 10~90HF |
| Resolution | 0.1HF |
| Accuracy | ≤±1HF |
| Spring Force | 455gf |
| Sensor Head Diameter | 25mm |
| Sensor Foot Diamter | 80mm |
| Battery Indicator | Low Battery Indicator |
| Auto Switch Off | √ |
| Operating Conditions | Temp:0~40ºC Humidity:10~90%RH |
| Power Supply | 4×1.5V AAA Size(UM-4)Battery |
| Dimensions | 162x80x80mm(6.4×3.1×3.1 inch) |
| Weight | 490g |
| Accessories | Main Unit, Carrying Case, Operation Manual |
| Optional Accessories | USB Data Cable with Software |
Where it’s used
Applications
Model HT6510F is suitable for the hardness measurement of foam.
Application
Material & Surface TestingIndustries
Agriculture
Automobile
Food & Beverage
Iron & Steel
Plastic
Rubber
Textiles
Not sure it fits your application?
Tell us what you need to measure and we’ll recommend the right model.
Supplied with the instrument
Accessories
- Accessories Main Unit
- Carrying Case
- Operation Manual Optional Accessories USB Data Cable with Software
Documentation
Foam Hardness Tester HT6510F
Datasheets and manuals for this instrument, as PDF.
