Introduction

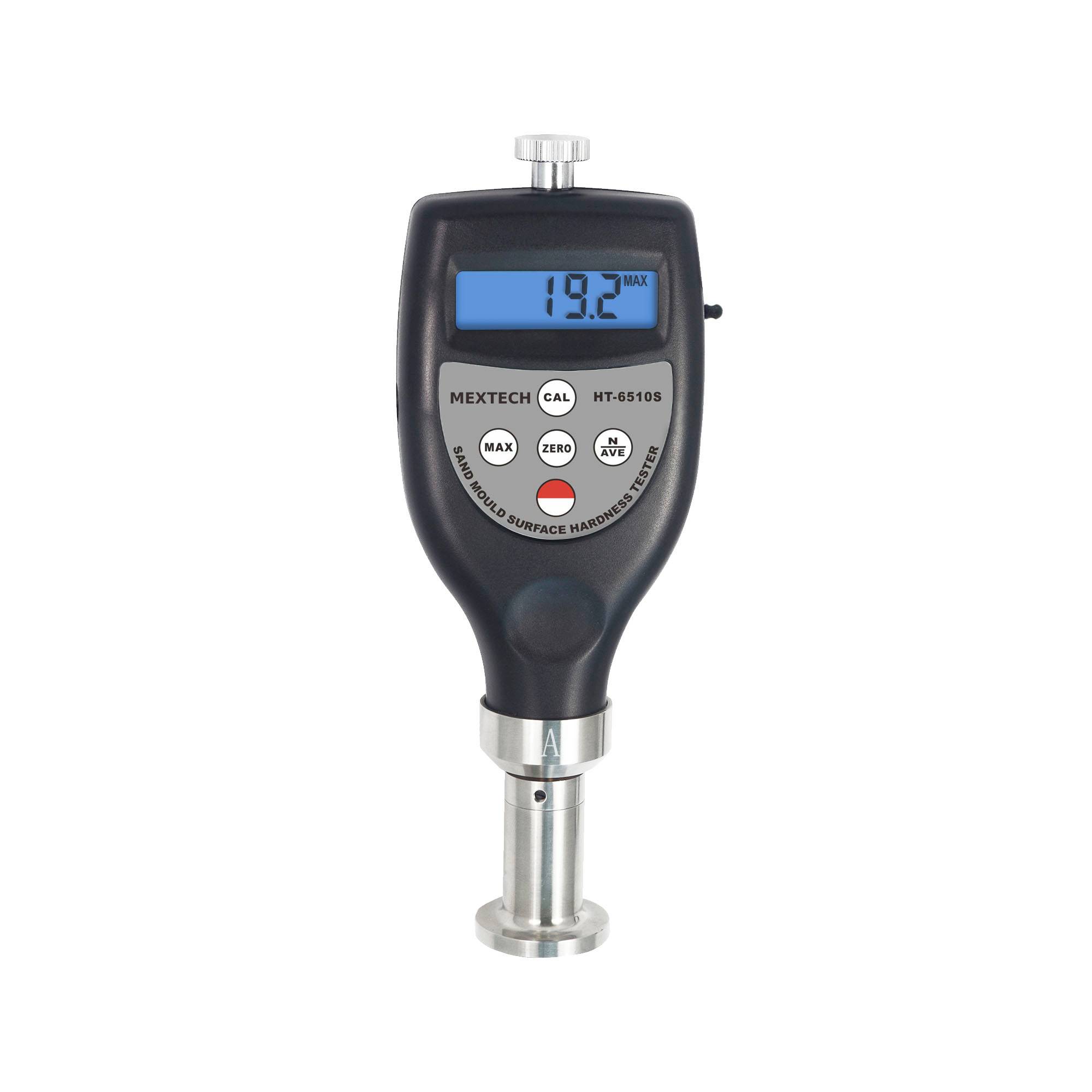

SAND MOULD SURFACE HARDNESS TESTER HT6510S Suitable for the surface hardness test of fine and coarse sand mould/core in manual or mechanical low and medium pressure moulding
- Features
- Specification
- Applications
- Accessories
- Download
* The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mould and provide technical parameters for the formulation of the moulding process.
* Suitable for the surface hardness test of fine and coarse sand mould/core in manual or mechanical low and medium pressure moulding.
* The unit hardness tester for sand mold surface is (g/mm2 ).
Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2 ).
* Low voltage indicator.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC for recording, printing and analysing by the optional software and cable for RS232C interface.
* Automatic power off to conserve power.
| Display: | 4 digits, 10 mm LCD |
| Display Range | 0~100 HB |
| compression travel | 2.50mm |
| load | 980g |
| TO load | 50g |
| Shape and size of indenter | BALL:R12.70 |
| measurement unit | HB |
| display parameter | Hardness value/average value/maximum value |
| Measurement Range: | 10~90 HB |
| Resolution | 0.1 H |
| Accuracy | ≤ ±1H |
| Low Voltage Warning Automatic shutdown function | √ |
| Low Voltage Warning Automatic shutdown function | √ |
| PC interface: | RS232C interface |
| Power supply | 2×1.5v AA (UM-3) battery |
| Operating condition: | Temp. 0~40˚C |
| Humidity <80% | |
| Size: | 162x65x28mm (6.4×2.6×1.1inch) |
| Weight | about 170g |
| (not including batteries) | |
| Humidity <80% | Humidity <80% |
| Accessories | Main Unit, Carrying Case, Operation Manual |
| Optional Accessories | USB Data Cable with Software |
