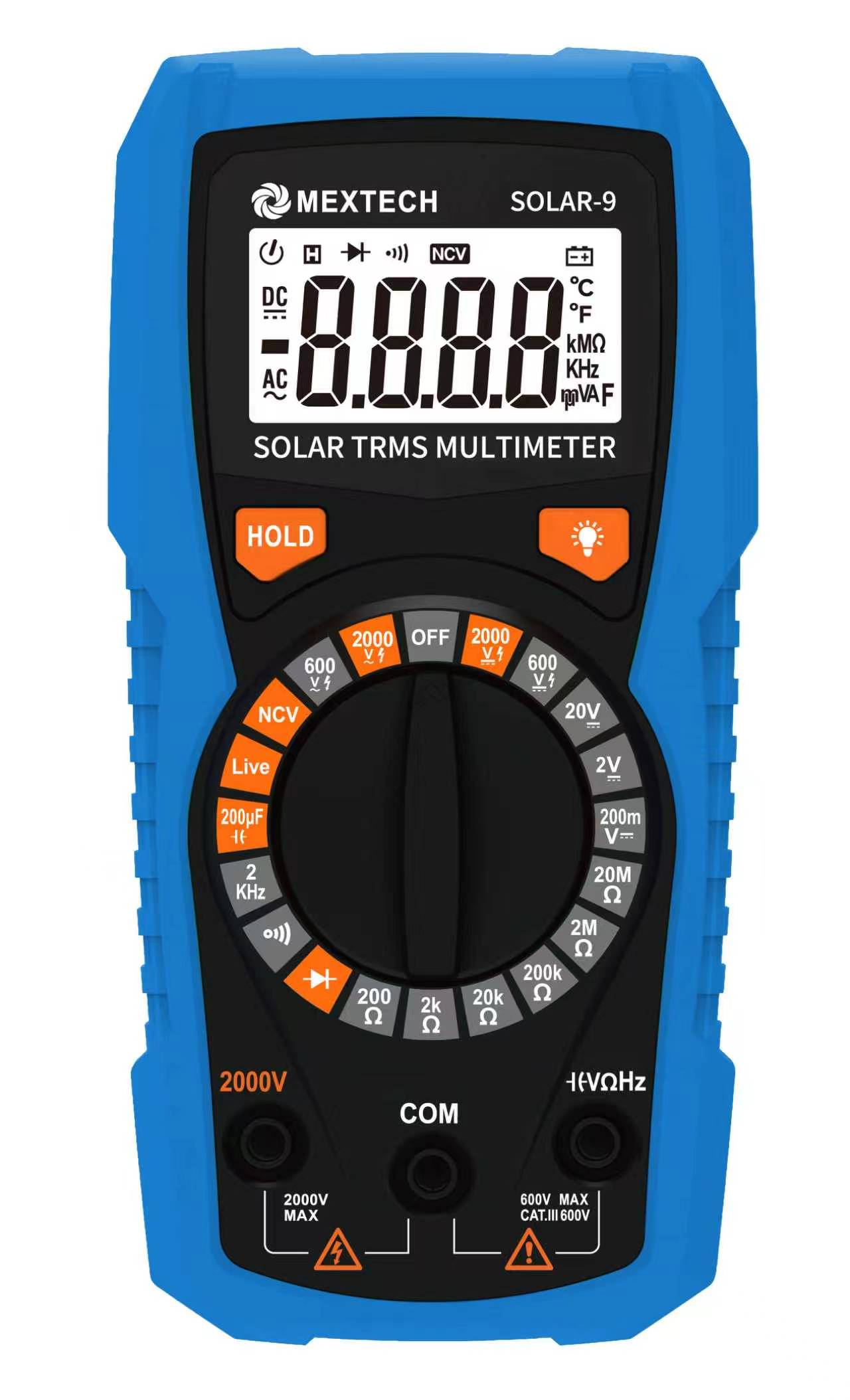

Solar Digital Multimeter SOLAR9
Mextech Solar9 is a Solar Digital Multimeter. It has an LCD Screen with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode, Continuity and other parameters. It is an ideal tool for electricians, Engineers, Repair...
Electrical Measurement
Electronics & Signal Analysis
Aerospace
Automobile
Chemicals & Petrochemicals
Construction & Real Estate+11 more industries
₹1,593.00
Taxes included. Free shipping across India.
Not sure it’s the right instrument?Ask the Mextech team on WhatsApp, by phone or email.
Why engineers choose it
Key features
Mextech Solar9 is a Solar Digital Multimeter. It has an LCD Screen with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode, Continuity and other parameters. It is an ideal tool for electricians, Engineers, Repair Centres for Laptop & Mobiles & Electronics appliances, Factories, Industries, Laboratories, Students and Households.
At a glance
- Display
- 1999 Count LCD Display
- Polarity Indication
- “-“ for Negative Polarity.
- APO
- After 15 Min From last key operation.
- Power Supply
- AAA 1.5V Battery X 2.
- Weight
- 160 gms (Without Battery).
- Low battery Indication
- Diode and Continuity test
- Data hold & Back Light
- Overrange Indication “OL”
- CAT III 600V
- Operating Temperature & Humidity: 0°C to 40°C, 45% to 80% RH
- Storage Temperature & Humidity: -10°C to 50°C, 45% to 80% RH
- Unit Size 147 X 74 X 37 mm
Technical data
Specification
DC Voltage
| Ranges | Resolution | Accuracy |
| 200mV | 0.1mV | ± (0.05% of reading + 2words) |
| 2V | 0.001V | |
| 20V | 0.01V | |
| 600V | 1V | ± (1.0% of reading + 2words) |
| 2000V | 1V | ± (1.5% of reading + 2words) |
AC Voltage
| Ranges | Resolution | Accuracy |
| 600V | 1V | ±(1.2% reading +5 digits) |
| 2000V | 1V | ±(1.5% reading + 5digits) |
-Input impedance: 10MΩ.
-Response: True RMS
– Maximum input voltage:2000V Range of 2000V AC(RMS).
-Frequency Response: 40Hz~1kHz (for standard sine and
triangle wave)
-Display: True RMS (for other waveform size 200Hz for reference only)
RESISTANCE
| RANGE | RESOLUTION | ACCURACY |
| 200Ω | 0.1Ω | ±(1.2% reading + 5digits) |
| 2kΩ | 0.001kΩ | |
| 20kΩ | 0.01kΩ | |
| 200kΩ | 0.1kΩ | |
| 2MΩ | 0.001MΩ | |
| 20MΩ | 0.01MΩ | ±(2.0% reading + 5 digits) |
Overload protection: PTC 250V DC or AC (RMS)
CAPACITANCE
| RANGE | RESOLUTION | ACCURACY |
| 200 µF | 0.1µF | ±(4.0% reading+5 digits) |
Overload protection: 250V DC or AC (RMS)
FREQUENCY
| RANGE | RESOLUTION | ACCURACY |
| 2KHz | 0.001KHz | ±(1.0% reading + 5 digits) |
DIODE AND CONTINUITY BUZZER
| RANGE | DISCRIPTION |
|
Built-in-buzzer sounds when resistance ˂approx. 50Ώ. |
|
| Displays approximate forward voltage Diode. |
Overload protection PTC 250V DC OR AC RMS
Where it’s used
Applications
Mextech Solar9 is a Solar Digital Multimeter. It has an LCD Screen with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode, Continuity and other parameters. It is an ideal tool for electricians, Engineers, Repair Centres for Laptop & Mobiles & Electronics appliances, Factories, Industries, Laboratories, Students and Households.
Application
Electrical Measurement
Electronics & Signal AnalysisIndustries
Aerospace
Automobile
Chemicals & Petrochemicals
Construction & Real Estate
Defence
Education
Electrical & Electronics
Energy & Power
HVAC & Facility Management
Iron & Steel
Laboratories & R&D
Petroleum, Oil & Natural Gas
Railway
Telecommunication
Transport & Infrastructure
Not sure it fits your application?
Tell us what you need to measure and we’ll recommend the right model.
Supplied with the instrument
Accessories
- User Manual
- Test Lead
- 2 X 1.5V batteries
