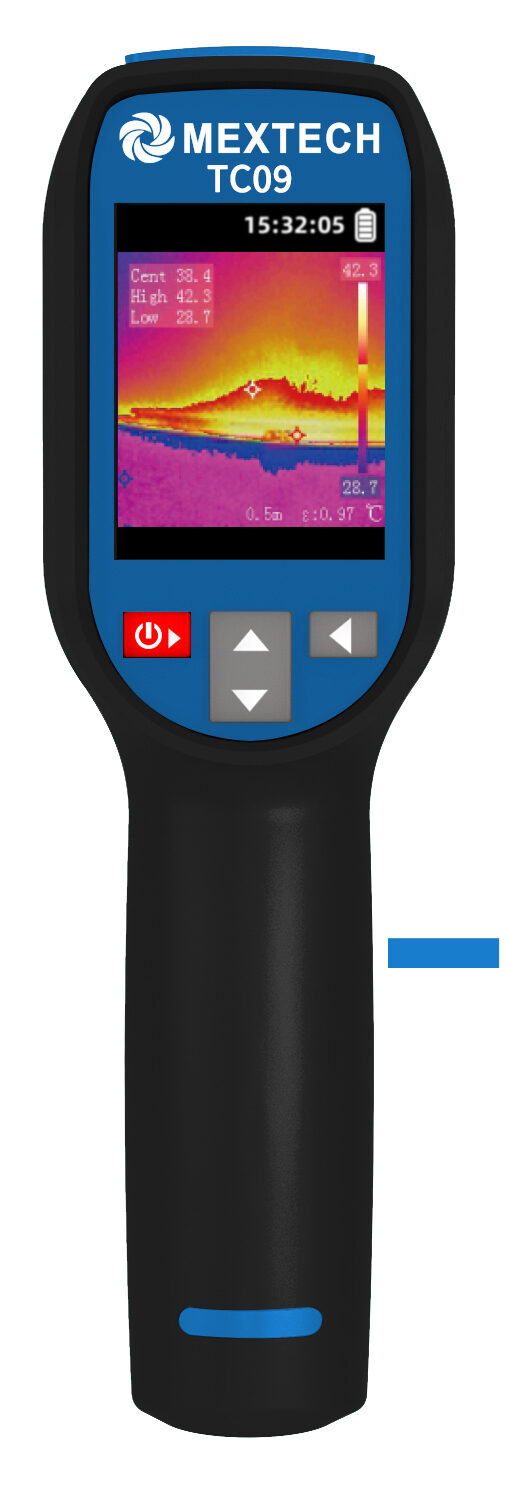

Thermal Imager TC09
TC09 is a handheld infrared thermal imager widely used in medical, firefighting, transportation, agriculture, geology, energy, smelting, electronic manufacturing pipelines, circuits and other fields. It is a commonly used thermal imager for electricians and maintenance technicians to quickly locate problem areas.
Taxes included. Free shipping across India.
Key features
TC09 is a handheld infrared thermal imager widely used in medical, firefighting, transportation, agriculture, geology, energy, smelting, electronic manufacturing pipelines, circuits and other fields. It is a commonly used thermal imager for electricians and maintenance technicians to quickly locate problem areas.
At a glance
- Shooting/Positioning
- Short press: Take a picture and save.
- Long press
- Use laser infrared for positioning and measurement
- Durable design
- withstands falls up to 1.5m in height
- Measuring Range: -20°C~550°C Wider temperature measurement range, more application scenarios.
- Locates temperature measurement points instantly with visual thermography. Rapid fault detection, ensuring no omission or misjudgment
- 240×240 Pixels/25hz Frame Rate Uses cutting-edge image stabilization technology
- Automatically Tracking High temperature, low temperature, center temperature 3 points simultaneously measurement.
- Automatically track the Highest temperature, Lowest temperature, and center point temperature in the same screen, and display temperature values in real-time.
- Temperature Alarm: Menu can set high/low alarm values. If the measured temperature exceeds the set alarm value, the value on the screen will turn red.
- 4GB Storage Card BMP format file, It can be connected to a computer to analyze pictures. Built-in 4GB memory card
- 15 Color Palettes Offers 15 distinct color display modes
- Adjustable Emissivity Measuring Distance. The emissivity can be adjusted according to different measurement needs on objects ranging from 0.1 to 1. Measuring range can be adapted based on varying distance requirements between 0.3 meters to 3 meters.
- IP54 Waterproof And Dustproof High-quality double-injection-molded body made from high-grade materials
- 50°×50°Large Wide-Angle Lens Offering a broader view. It is designed for outdoor usage and excels in inspecting infrastructure safety, such as power lines, with enhanced visibility due to its full-view TFT true-color screen with LED backlighting and a resolution of 240×240 pixels, ensuring clearer images.
Specification
| Sensor Type | Vanadium oxide (VOX) microcalorimeter |
| Response Band | 8-14pm |
| Thermal image resolution | 240×240 Pixels |
| Noise equivalent temperature difference (NETD) | ≤60 mK(@25 °C.F#1.0) |
| Angle of view (FOV) | 50.0°(H)×50°(V) /72.1″(D) |
| Spatial resolution (IFOV) | 8.89 mrad |
| Frame rate | 25Hz |
| The focal length of the imaging lens | 1.35 mm |
| Temperature measuring focal length | 0.3m-3m Adjustable |
| Temperature range | -20°C-550°C |
| Accuracy of temperature measurement | ±2°C or ± 2% of the reading (take the larger value of the reading |
| Unit of temperature measurement | Celsius, Fahrenheit, Kelvin |
| Temperature resolution | 0.1°C |
| Emissivity | 0.01-1.00 Adjustable |
| Temperature measurement shows | Center point temperature measurement, high and low temperature tracking |
| Swatches | White Hot, Black hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Bark brown Color 1, Color 2, Ice fire, Rain, Green hol. Red Hot, Dark blue. |
| Display screen | 2.4 inches TFT LCD |
| Display resolution | 320 x 240 |
| Key | Power Key, up key, Down Key, Return key. Trigger key |
| Laser Pointer | Yes |
| Temperature Alarm | Screen font color alarm |
| Image Storage | Built in memory card |
| Number of image files | 30000 |
| Image format | BMP |
| Shock/vibration | GB/T 2423.5-2019;GB/T2423.10-2008 |
| Electromagnetic compatibility (EMC) | GB/T17799.2.GB17799.3-2012 |
| Protection level | IP54 |
| Installation mode | Tripod mount UNC-20 |
| Focus mode | Auto focusing |
| Hardware interface | Type-C USB |
| Battery type | Rechargeable lithium battery (3.7V/2500mAh) |
| The working hours of the battery | >7h@25°C |
| Charging time | <3h@25°C |
| Charging voltage/current | 5V/2A |
| Boot speed | -8 seconds |
| Automatic shutdown | Diable (default) (optional 10 Min, 20 Min, 30 Min, 40 Min, 50 Min, 60 Min, Disable) |
| Operating temperature | -10°C-50°C |
| Storage temperature | -40°C~70°C |
| Working humidity | <85%RH (Non-condensing) |
| Drop | 1.5m |
| Product dimensions | 193.4*59.4*77.4mm |
| Product weight | 278G |
Applications
TC09 is a handheld infrared thermal imager widely used in medical, firefighting, transportation, agriculture, geology, energy, smelting, electronic manufacturing pipelines, circuits and other fields. It is a commonly used thermal imager for electricians and maintenance technicians to quickly locate problem areas.
Accessories
- User Manual
- USB cable
Thermal Imager TC09
Datasheets and manuals for this instrument, as PDF.
